Water Beast 700
Container treatment plants with a membrane bioreactor
100 – 400 m3 WW/day designed for 700 – 2100 inhabitants
Container WWTPs are delivered pre-assembled. A very short time of delivery and putting the facility into operation from 3 to 6 months.
They consist of two basic modules, each with dimensions of a transport container for simple transport and assembly. They are equipped with the state-of-the-art treatment technology using membrane bioreactors.
The container tanks are covered. The covers are also used as service platforms for the maintenance and repairs of technological equipment. All the equipment inside the tanks (pumps, stirrers etc.) is adapted to allow its easy and quick replacement. The container tanks may be located on the surface, as half-embedded or fully embedded.
Depending on climatic conditions, the will be provided with suitable thermal insulation. Submersible equipment is already installed in the lower part. A service platform with laid segments of distribution pipelines is located in the upper part. Both parts will be joined together and sealed at the place of assembly. The inner surfaces of the tank and covers are provided with a special zinc-containing coating resistant to the water being treated.
In addition to the basic container modules, we also supply service containers containing supplementary technologies, a control centre, a blowing plant. The treatment plant is pre-assembled and during the on-site assembly it is only necessary to interconnect pipelines, electric distribution lines, process tanks and make a connection to the WW pumping station.
Possible use of the treatment plant
municipalities
areas with an increased level of environmental protection
crisis areas
commercial objects
industrial objects
Innovative solution
The membrane bioreactor MBR is a facility for perfect wastewater treatment.
Cleaned water is extracted through micro pores (0.04μm) in the walls of thousands of fine fibres of the membrane bioreactor. Water thus cleaned does not contain almost any insoluble substances and most of the bacteria, which is why it can be used as service water for irrigation and for the restoration of natural water areas and wetlands.
more about treatment process

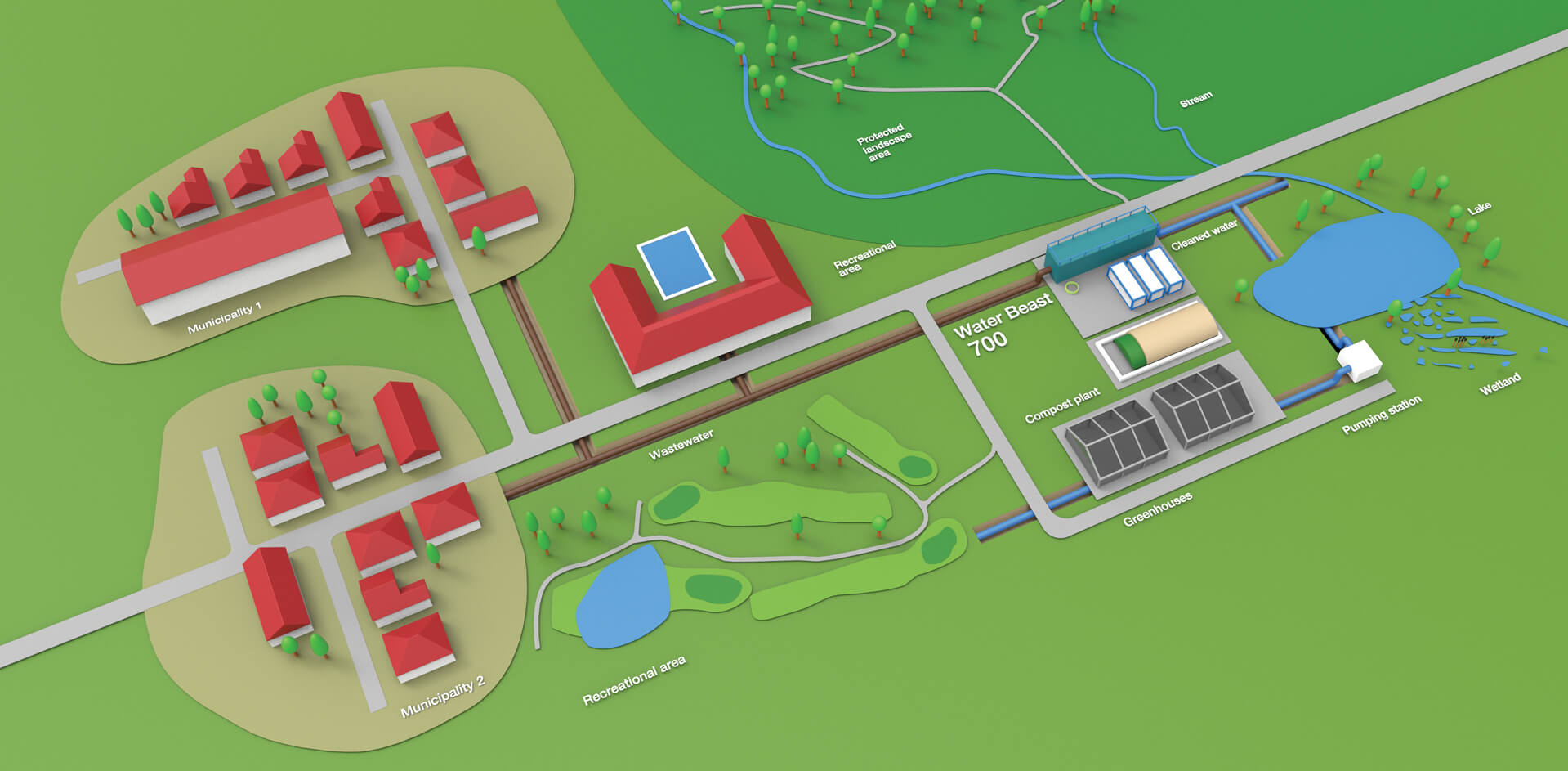

Proposal for the location of Water Beast 700 in the vicinity of a protected landscape area
A typical site for embedding a container WWTP with a MBR is an agglomeration of minor municipalities and settlements in mountain areas with recreational facilities with sports facilities, hotels and hostels. This is an opportunity to reuse well cleaned water and also a possibility to retain it in the area. The dewatered stabilised sludge produced from the WWTP is suitable for use in local compost plants and for agricultural purposes in plant production.
Features of the treatment plant
a very short manufacture, installation and commissioning time, 3-6 months
high treatment efficiency, for some indicators up to 99%
use of cleaned water as service water, the possibility of discharge into low-flow watercourses
possibility of funding through EU funds, banks and leasing
saving of costs related to the construction of a system of concrete tanks
fully automatic and almost unattended operation
an application for remote control and for checking the condition from a PC, smartphone or tablet
built-up area compared to conventional WWTPs and low construction costs
Downloads
Remote control
The latest generation of PLC, a database and visualisation system, works under both the Android and iOS systems. After it is connected via the internet, it is any time capable of monitoring the state, correcting the automatic WWTP control or switching the operation to the manual mode. The visualisation system provides timely alerts to changes of process values beyond required ranges, which helps prevent emergency situations of the WWTP. For service purposes, it is possible to retrospectively monitor all states, alarms and messages. Remote diagnostics and preventive maintenance thus help you substantially reduce service costs and predict potential emergency situations. We offer the possibility to connect to the manufacturer‘s dispatching. Statistical evaluation of selected process parameters representing the amount of cleaned water and energy consumption at selected time intervals goes without saying.
more about facilities and equipment
